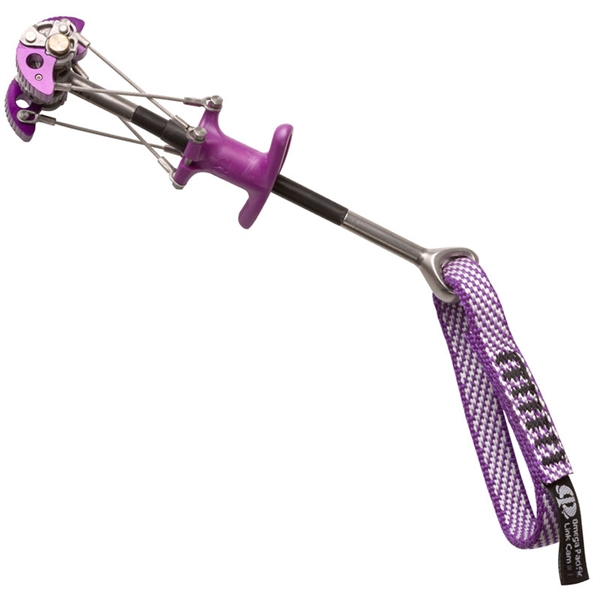

Link Cam # 0.5
Picture of Link Cam # 0.5
Click on thumbnail images below to see large image.
Product image

Link Cam # 0.5

Model: OPLC050

Current rating is 0.00. Total votes 0.

* Color

Certification CE LOGO
Certification UIAA LOGO
Certification NFPA 1983/2006 Edition Standards
Certification MADE IN THE USA
Certification NFPA 1983/2006 edition standards
Availability: 1-3 Weeks
Bookmark and Share


The Omega Pacific Link Cam is a revolutionary concept that operates on the simple design that a cam lobe can be trisected and linked so that as the cam is retracted, the lobe unfolds and permits an amazing range for a unit of its size. Utilizing a reliable, single-axle design, our cam lobes exceed the closest competition`s range substantially. With a camming ratio of over 2.5:1, there`s nothing close to the Link Cam on the market today. The Link Cam #1, for instance, covers the same range as up to four of our competitors cams! That extended range means you can leave the ground with fewer pieces on your rack. No more doubling up on pieces you think you ``might`` need if you`re unsure where, exactly, you`ll need doubles of one particular piece. For users, it means packing in less gear. Mechanically, Link Cams are as innovative as the concept behind their design. Built with a hybrid blend of materials and advanced MIM process, Link Cams are the most sophisticated and modern camming devices in the world. The two, inner links on each lobe unit are built with a very new (and very expensive) process known as Metal-Injection-Molding which creates detailed, precision pieces—like casting—with the strength of machined parts and are made from 17-4 aircraft stainless steel. The outer link is machined from 7000-series aluminum alloy.

Other benefits abound:

  • With a constant cam angle of 13.5°, range is achieved without sacrificing holding power.
  • With the increased surface contact between the retracted cam links and the rock, Link Cams tend to"walk" less than other units.
  • The unique range eliminates the need for specialized, "offset cams" for flared-crack protection.
  • The range of Link Cams provides a greater margin of safety for "plug and go" placements.
  • Minimize the time spent fooling with gear.

Range: 13.5-35mm / 0.53-1.38"
Strength: 8 kN
Weight: 95 g / 3.35 oz
Length: 164mm/ 6.47"
Width: 46mm / 1.81 oz
